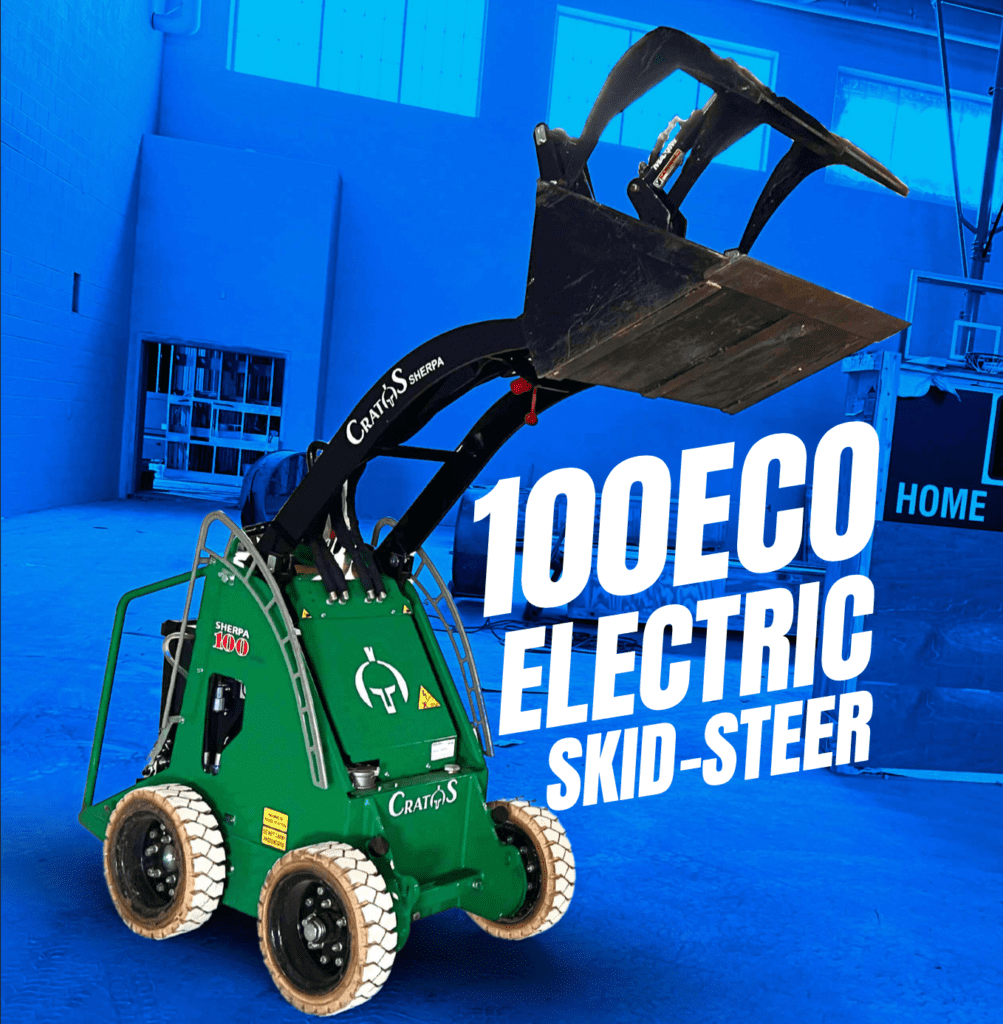

100ECO Electric Skid-Steer Features
-
Less than 30″ wide
-
8 hour battery life
-
Elevator-friendly
-
100% battery powered
-
Charges on a single 110V outlet
-
6ft dump height
-
Up to 3 mph
Specifications
| ELECTRICAL SYSTEM | |
| Motor Type | DC Motor (Brushless) |
| Motor Capacity | 3.1 kW/4.2 HP |
| Motor Speed | 1,850 rpm |
| Voltage | 24V |
| Battery Size | 8.6 kW |
| Runtime | 7-9 hr |
| Battery Life Cycles | up to 3,000 |
| Recharge time on 110V | 14 hr |
| OPERATIONAL | |
| Max height w/ bucket up | 100in |
| Minimum Height | 47in |
| Max length w/ bucket | 85in |
| Minimum length | 59.8in |
| Width | 29.9in |
| Max Coupling Plate Hinge Point Height | 81in |
| Bucket Angle when Dumping | 51 degrees |
| Dump Height | 73in |
| Length from Front Wheel to Bucket when Dumping | 7in |
| Wheelbase | 26in |
| Ground Clearance | 5in |
| Turning Radius | 63in |
| Gradability | 14 degrees |
| Ground Pressure Rating | 27.5psi |
| Breakout Force | 1,315lb |
| Tractive Force | 730lb |
| Machine Weight | 1,770lb |
| Rating Tipping Load | 620lb |
| Speed | Up to 2mph |
| ELECTRICAL SYSTEM | |
| Hydraulic Tank Capacity | 10 gal |
| Hydraulic Flow | up to 4 gpm |
| Hydraulic Pressure | 2,175 psi |
Buy Cratos from Pro Tool & Supply
Request a Quote or call us at (857) 706-2980 to speak with a Pro Tool & Supply representative for more information on our stock of Cratos Skid-Steers.
